Giảm -31%

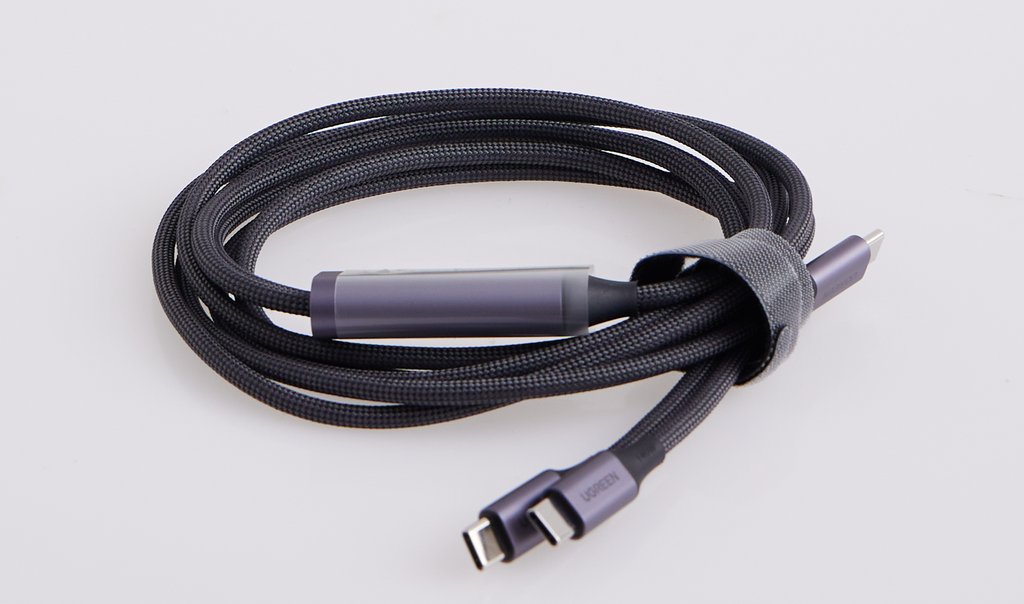

UGREEN 2-in-1 Universal PD Fast Charging Cable 140W Max 2m

660.000₫ 950.000₫

SKU: Kho: Hết hàng
SKU: 75733 Danh mục: Thương hiệu:

Chính sách mua hàng

Freeship 350K Freeship 350K
BH 18 tháng BH 18 tháng
Chính hãng Chính hãng
CO, CQ, VAT CO, CQ, VAT
Cần tư vấn? Chat Zalo 0835 33 48 33
  • Line length: 1.5-2 meters
  • gauge
  • 30 AWG (19/0.06TS + 250D Nylon) data cable * 2C (white/green) + 30 AWG (19/0.06TS + 250D Nylon) CC cable * 1C (blue) + 23 AWG (52/0.08TS + 250D Nylon) power cable * 3C (pink/pink)
  • Red/Black) + F(1000D Nylon) * 4 strands + AL + B (16/10/0.08TC) Outer layer wrapped in black woven mesh
  • Diameter OD: 3.8±0.1mm before weaving / 4.4±0.15mm after weaving
  • Outer layer of the wire is made of high molecular material.
  • Core material: tin-plated copper
  • Shielded aluminum foil + tin-plated copper braided
  • Number of cores: 6
  • Carrying current 5A (MAX)
  • pin count: USB-C: 12 pins
  • Plug with USB-C/M black rubber core (94V-0) terminal gold-plated 3U” stainless steel casing nickel-plated 10nF capacitor, single-port built-in 1KΩ pull-down resistor
  • Two-port connection device type: Single-port connection to the main device and dual-port connection to slave devices during data transfer; note that only one port can be connected at a time. For charging, single-port connection to the charger and dual-port connection to the charging device.
  • Chip models: MP2491C + IP2752 + IP2738U + SGM7227
  • Plug-and-play times: USB-C: 10,000 times
  • Swing Test: Type-C connector 3000 times: swing angle ±90°, lifting weight 300g, 30 times/minute
    Wire mid-range 3000 times: swing angle ±60°, lifting weight 300g, 30 times/minute
  • Resistor: Single on-wire DC resistor: Data cable ≈ 0.32Ω/m² / Power cable ≈ 0.067Ω/m²
  • Capacitor parameters: 10 nF*3
  • Interface version/data transfer: USB2. *Line length: 1 meter
  • Gauge:
  • Black/Gray Nebula Model: 30 AWG (19/0.06TS + 250D Nylon) Signal Cable * 2C (White/Green) + 30 AWG (10/0.08ECS + 250D Nylon) CC Cable * 2 (Red/
  • Blue) +23 AWG (50/0.08ECS + 500D Nylon) power cord * 4C (red/book/red/book)
  • Purple/blue/pink/white models: 30 AWG (19/0.06TS + 250D Nylon) signal cable * 2C (white/green) + 30 AWG (10/0.08ECS + 250D Nylon) CC cable * 2 (red/
  • Blue) +24 AWG (43/0.08ECS + 500D Nylon) power cord * 4C (red/book/red/book)
  • Diameter OD: Black/Nebula Gray Model: 1.5*6.3±0.1mm White/Violet/Blue/Pink Model: (1.5+0.1/-0)* (6.5+0.2/-0)
  • The wire is externally coated with SEBS.
  • Core material: tin-plated copper + enamel-coated copper
  • Block /
  • Number of cores: 8
  • Carrying current 5A (MAX)
  • pin count: USB-C : 14 pins
  • Plug with USB-C/M black rubber core (94V-0), gold-plated pin 3U”, 10nF capacitor, nickel-plated stainless steel casing, one end with (E-Marker chip: HUSB332D). White/pink/blue/purple versions are available.
  • Chip model HUSB332D
  • USB-C plug-and-play times: 10,000 times
  • Swing test: 5000 times, 30 times/min, swing angle ±90°C, lifting weight 300g
  • Resistance parameters: Black/nebula Gray model: Data cable ≈ 0.33Ω/m米, Power cable ≈ 0.07Ω/m米 White/Purple/Blue/Pink model: ≈0.33Ω/m,, Power cable ≈ 0.081Ω/m米
  • Capacitor parameters: 10 nF*
  • Interface version/data transfer USB 2.0/480 Mbps
  • Resolution: /
  • Charging power: 5V/3A, 9V/2A, 9V/3A, 15V/2A, 15V/3A, 20V/3A, 20V/5A (Max)
  • Charging protocol: PD/PPS
  • Flame-retardant grade: GB/T 5169.23-2024
  • Working temperature/storage temperature: 0~45°C / -15~70°C 18 resolution /
  • charging power
  • Type-C to Single Type-C: 5/3A, 9V/2A, 9V/3A, 15V/2A, 15V/3A, 20V/3A, 20V/5A, 28V/5A (MAX)
  • Output when connected simultaneously
  • Power (P) Allocation
  • EPR stands for Support
  • PD3.1 Fast Charging Protocol
  • The equipment
  • P ≥ 90W:
  • With EPR equipment:
  • EPR Equipment: P-30W
  • Non-EPR equipment: 30W
  • Two circuits are plugged in simultaneously, with non-EPR devices receiving 30W (5V ⎓ 3A / 9V ⎓ 3A / 12V ⎓ 2.5A / 15V ⎓ 2A), and the remaining power allocated to the EPR equipment.
  • Without EPR equipment:
  • 20V Equipment: P-30W
  • Non-20V equipment: 30W
  • Two outlets are plugged in simultaneously, with 30W allocated ⎓ non-20V (5V 3A / 9V ⎓ 3A / 12V ⎓ 2.5A / 15V ⎓ 2A), and the remaining power allocated to 20V equipment.
  • 20V equipment: P/2 W
  • 20V equipment: P/2 W
  • Two 20V devices with power evenly distributed between them are plugged in simultaneously.
  • Non-20V equipment: P/2 W
  • Non-20V equipment: P/2 W
  • Two lines plugged in, with power evenly distributed between two non-20V devices
  • 36≤P<90W : No EPR equipment
  • 20V Equipment: P-18W
  • Non-20V equipment: 18W
  • Two circuits are plugged in simultaneously, with 18W ⎓ non-20V distribution (5V ⎓ 3A and 9V ⎓ 2A), and the remaining power allocated to 20V equipment.
  • 20V equipment: P/2 W
  • 20V equipment: P/2 W
  • Two 20V devices with power evenly distributed between them are plugged in simultaneously.
  • Non-20V equipment: P/2 W
  • Non-20V equipment: P/2 W
  • Two lines plugged in, with power evenly distributed between two non-20V devices
  • Any device
  • Equipment 1: P/2 W
  • Equipment 2: P/2 W
  • Two circuits plugged in, with power evenly distributed between the two devices
  • Charging protocol PD3.1/3.0/2.0/PPS (only supports PD protocol when charging simultaneously via dual ports, not PPS)
  • Flame Retardant Grade GB/T 5169.23-2024
  • Operating temperature/storage temperature: 0~45°C / -15~70°C
