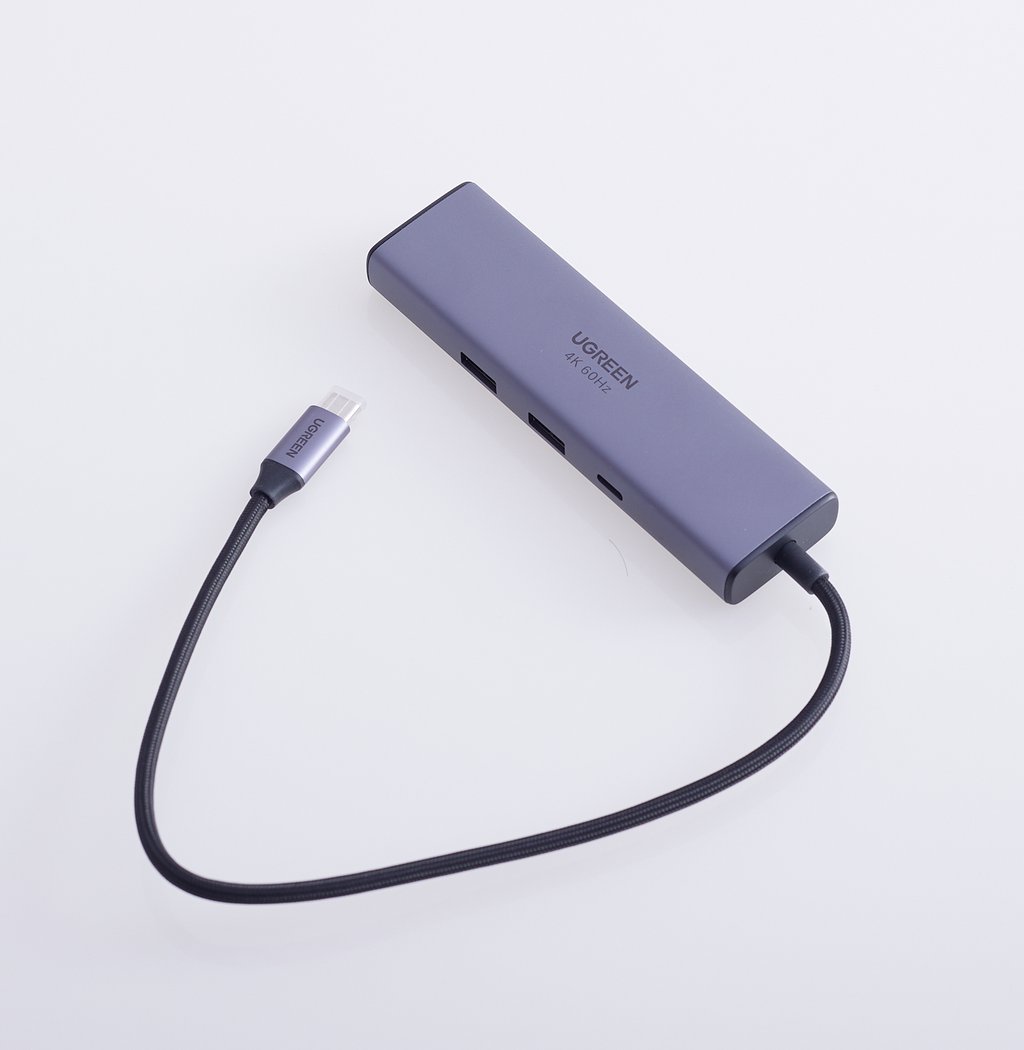

UGREEN 6-in-1 USB-C Hub

Mô tả

• Subject dimensions: L115 x W34 x H13 (mm)
• Self-contained wire specifications: Self-contained wire length is 30 cm, conductor material: 34 AWG (7/0.06T), core material: tin-plated copper
• Parts Information: No parts available
• Shell material: aluminum alloy casing, front and rear rack ABS+PC
• Input port specifications:
• 1x USB-C: A USB port for connecting to the main device (laptops, smartphones, tablets, etc.). Compliant with USB 3.0 standards, with a theoretical speed up to 5Gbps and backward compatible with USB 2.0/1.1. Compliant with DP1.4 specifications, with a bandwidth of 8.1 Gbps per Lane and a total of 16.2 Gbps for 2 Lane, it supports up to 4K60Hz video resolution input and is backward compatible with low resolutions. Supports charging laptops, providing up to 85W of charging power.
• 1x USB-C Female: Screen-printed with lightning icon + “PD” for connecting to the PD power adapter. Compliant with PD3.0 specifications, it supports a maximum power input of 20V/5A and 100W, and is compatible with different voltages such as 15V, 9V, and 5V. Using a dynamic withholding method, PD power is ≤ 45W, with a deduction of 5W; 45W < PD power is ≤ 90W, with a deduction of 10W; 90W < PD power is ≤ 100W, with a deduction of 15W.
• Output port specification: 1x DP-Out: Motherboard, used for connecting the display. Compliant with DP1.4 specifications, it supports up to 4K60Hz video resolution output and is backward compatible with 4K30Hz, 2K120Hz/60Hz, 1080P120Hz/60Hz, 720P, and 480P. Supports HDCP/HDR.
• 3x USB-A: Motherboard, with a port screen-printed at 5Gbps, used to connect USB devices (keyboard, USB flash drive, hard drive, camera, speaker, etc.). Compliant with USB 3.0 standards, with a theoretical speed up to 5Gbps and backward compatible with USB 2.0/1.1. Supports BC1.2.
• 1x USB-C: Motherboard, with a port screen-printed 5Gbos design for connecting USB devices (keyboard, USB flash drive, hard drive, camera, speaker, etc.). Compliant with USB 3.0 standards, with a theoretical speed up to 5Gbps and backward compatible with USB 3.0/2.0/1.1. Supports BC1.2.
• Indicator light instructions: No indicator light
• Button function: No buttons
• Power requirements: Powered by the main device, or connected to a PD power adapter via a USB-C port.
• Product power consumption: No-load power ≈ 1.24W (5V 249mA), full-load power ≈ 4.6W (5V 0.92A)
• Video format: RGB 8/10bit, YCbCr (444/422) 8/10bit
• Audio format: PCM
• Audio sampling rate: Supports up to 192kHz with 24-bit resolution, compatible with low sampling rates.
• Audio output simultaneously: No 3.5mm interface
• Image output mode: A+A (copy) / A+B (extension)
• USB Current Limit: 3x USB-A+1x USB-C Total Current Limit 2.0A
• Variable refresh rate: /
• Dolby Vision/Atmos:/
• EDID processing method: (audio/video) Read the display’s EDID
• USB-C Extension Cable: Not Supported
• Screen delay: virtually no delay
• Supported game consoles: Nintendo Switch (does not support Switch2), Steam Deck, ROG Ally, Lenovo Legion Go
• Operating temperature: 0℃~45℃
• Storage temperature: -20℃ to 60℃
• Measured temperature: At room temperature of 25°C (when operating at full load), the product surface temperature is approximately 43°C.
• Drive Requirements: Drive-free use
• Supported systems: Windows, macOS, Linux
• Upgrade method: 1. The DP chip can be upgraded online to a Windows computer via the A8/B8 fixture via the PD port via the CTO C cable;
• 2.The network port chip can be upgraded online by directly connecting it to a Windows computer.
• Others: 1. The product does not support 3D image transmission; 2. It does not promote support for 2K144Hz and 1080P240Hz.
