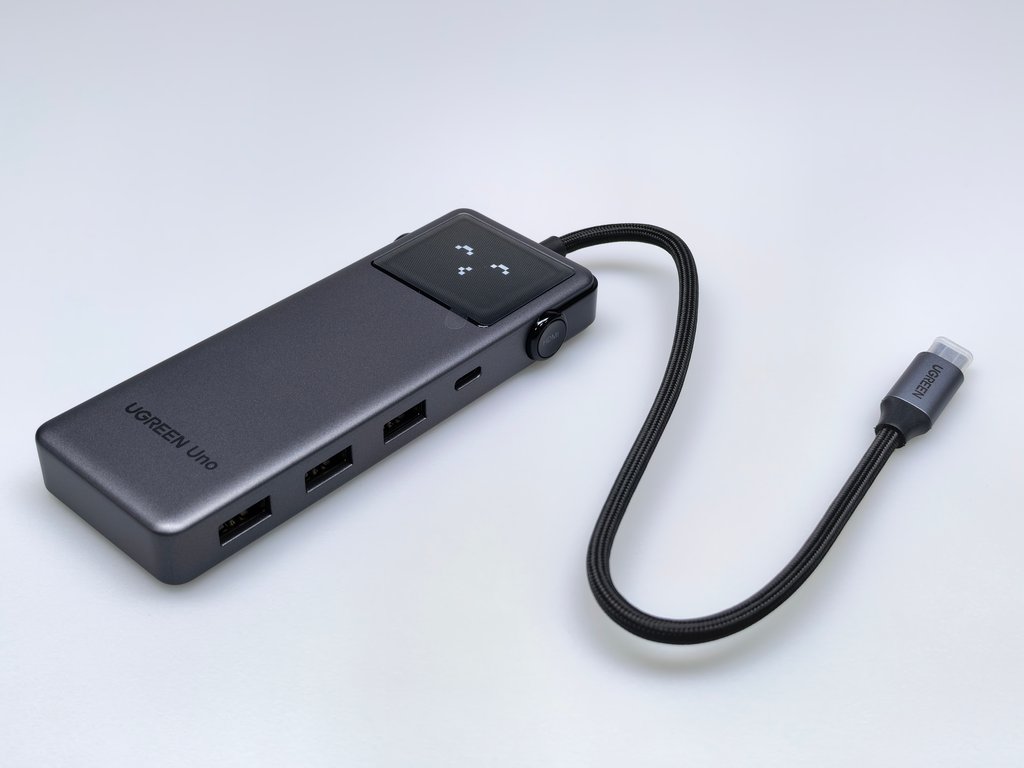

UGREEN 6-in-1 USB-C Hub

Mô tả

• Housing Material: PC (flame retardant V0), ABS buttons
• Input Port Specifications
• 1x USB-C: Male, upstream USB port, used to connect to a host device (laptop, phone, tablet, etc.). Compliant with the USB 3.0 standard, with a theoretical maximum speed of 5Gbps and backward compatibility with USB 2.0/1.1. Compliant with the DP1.4 specification, with a bandwidth of 8.1Gbps per lane, 16.2Gbps total across 2 lanes, supporting up to 4K60Hz video input resolution and backward compatibility with lower resolutions. Supports laptop charging, providing up to 90W of charging power.
• 1x USB-C: Female, silkscreened with a lightning bolt icon and “PD,” for connecting to a PD power adapter. Compliant with the PD 3.0 specification, with a maximum power input of 20V/5A, 100W, and backward compatibility with 15V, 9V, and 5V. It uses a fixed pre-load mechanism, with a fixed pre-load of 10W. If no charging device is connected to the downstream PD port, it can provide up to 90W of charging power to the main device. If connected, it can only provide a maximum of 70W.
• Output Port Specifications
• 1x HDMI-Out: A female Type-A connector for connecting to a TV or monitor. Compliant with the HDMI 2.0 specification, it supports video output resolutions up to 4K60Hz and is backward compatible with 4K30Hz, 2K144Hz/120Hz/60Hz, 1080P240Hz/120Hz/60Hz, 720P, and 480P. It supports HDCP/HDR/3D but not CEC/ARC/eARC.
• 3x USB-A: Silkscreened with 5Gbps, it is used to connect USB devices (keyboards, mice, USB flash drives, hard drives, cameras, speakers, etc.). Compliant with the USB 3.0 standard, it offers a theoretical speed of up to 5Gbps and is backward compatible with USB 2.0/1.1; it also supports BC1.2. 1x USB-C: Silkscreen marked with 10Gbps, used to connect USB devices (keyboard, mouse, USB flash drive, hard drive, camera, speakers, etc.). Compliant with the USB 3.0 standard, it offers a theoretical speed of up to 5Gbps and is backward compatible with USB 2.0/1.1; it supports BC1.2. It also supports PD3.0 and can provide up to 20W of power.
• Indicator Description: LED display. For emoticon definitions, see the Notes.
• Button Function: 1x Black Button: Short press to turn the HDMI-Out output signal on and off, and to turn the screen off with one click.
• Power Requirements: Powered by a host device or connected to a PD power adapter via the USB-C port
• Power Consumption: No-load ≈ 0.96W (5V 191mA); Full-load ≈ 5.25W (5V 1.05A)
• Video Formats: RGB 8/10/12-bit, YCbCr (444, 422, 420) 8/10/12-bit
• Audio Formats: PCM, DTS AUDIO, DTS-HD, Dolby TrueHD, Dolby Digital, Dolby Digital Plus, Dolby Atmos
• Audio Sampling Rate: Supports up to 192kHz 24-bit, backwards compatible with lower sampling rates
• Simultaneous Audio Output /
• Image Output Modes: A+A (Copy) / A+B (Extend)
• USB Current Limit: 3x USB-A + 1x USB-C, total current limit 2A
• Variable Refresh Rate /
• Dolby Vision/Atmos Supports Dolby Vision and Dolby Atmos
• EDID Processing (Audio/Video): Reads the monitor’s EDID
• USB-C extension cables: Not supported
• Image Lag: Virtually zero
• Supports Steam deck, ROG Ally, Lenovo Legion Go
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Measured Temperature: At room temperature of 25°C, the product surface temperature (under full load) was approximately 53.6°C
• Driver Requirements: Driver-free
• Supported Operating Systems: Windows, macOS, Linux, iOS, iPadOS
• Upgrade: The video chip supports online upgrades on Windows
