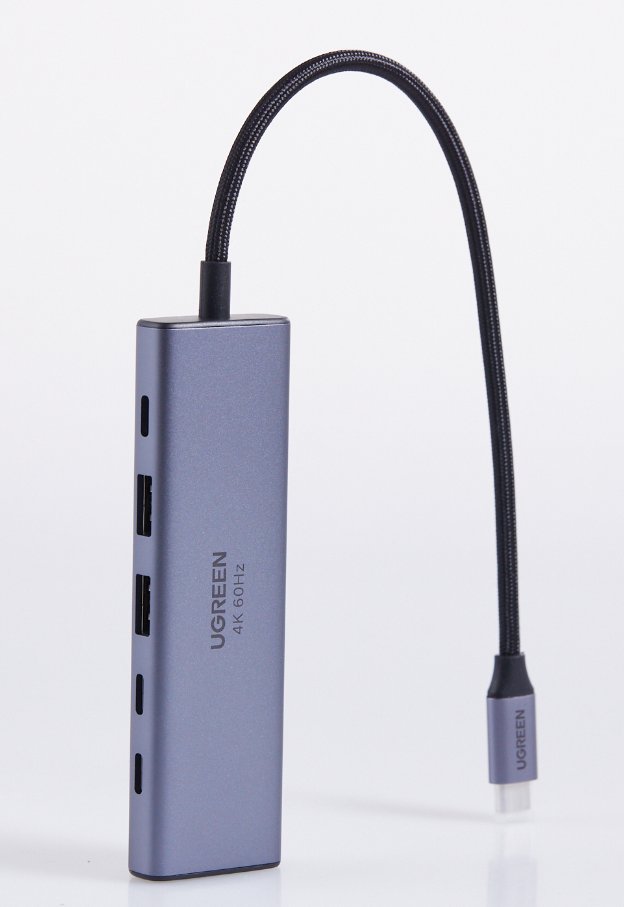

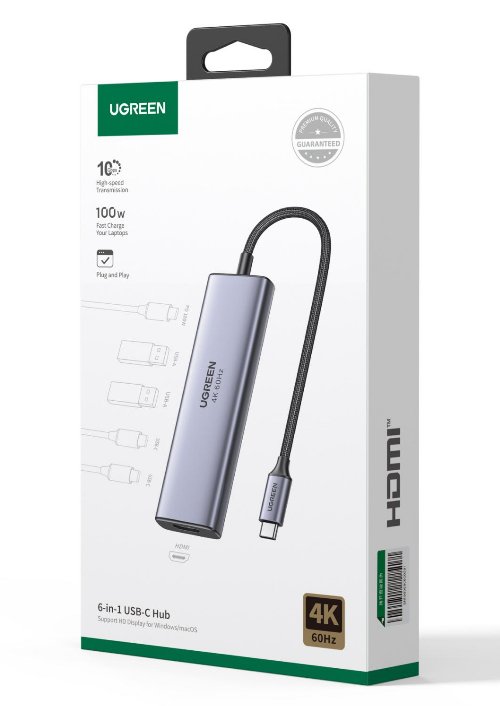

UGREEN 6-in-1 USB-C Hub

Mô tả

• Built-in cable size: 20cm, tin-plated copper, signal cable: 7/0.06 (34AWG)
• Input Port and Specifications:
• ◆1xUSB-C Male: USB-C GEN 2 standard with a transmission rate of 10Gbps; DP1.4, HDCP1.4/2.3, connected to a computer for data transfer and video functions; ◆1xUSB-C Female: supports PD 3.0 protocol, 20V, 15V, 9V, and 5V with a maximum charging power of 20V5A; does not support data functions.
• Output Ports and Specifications:
• ◆2xUSB3.2 A Female: USB3.2 standard, with a maximum transfer rate of 10Gbps, backward compatible with USB3.0/USB2.0/1.1; ◆2xUSB3.2 C female: USB3.0 standard, backward compatible with USB3.0/USB2.0/1.1; ◆1xHDMI 2.0/HDCP1.4/2.3, supports up to 12040Hz, resolution, up to 16040/SC60/40/40/Z, with resolution, compatible.
• Power Supply Method:
• Powered by the device’s USB-C or PD, it uses dynamic withholding with a PD power ≤ 45W, 5W, 45W < PD power ≤ 90W, 10W, 90W < PD power, 15W
• HDCP version HDCP 1.4/2.2
• Online Upgrade: The Windows system supports PD charging ports for upgrading the video chip FW (requires special cables)
• Power requirements: Computers and other primary devices or PD power supply.
• Video formats: RGB (8/10) bpc; YCbCr (4:4/4:2:2/4:0) (8/10) bpc;
• Audio Format DTS/LPCM
• Audio sampling rate: 24-bit/192 kHz;
• USB ports with a current limit of 2xUSB3.0 + 2xUSB-C ports; Total current limit: 2.0A
• Image Output Mode
• Windows: A+A or A+B (up to 4K@60Hz)
• mac OS: A+A or A+B (up to 4K@60Hz)
• Product power consumption: No load ≈ 184 mA
• VRR does not support VRR/Free-sync; it supports G-sync.
• Operating temperature: 0℃~40℃
• Storage temperature: -20℃ to 60℃
• Measured temperature: Environment 27°C/humidity 58%, (operating at full load) housing temperature around 47°C;
• Supported systems: Windows 11/10; Linux; MAC OS; iOS; Android;
• Product-Driven Driver-Free
• Dolby Vision supports Dolby Vision (iPad Pro)
• Supports gaming consoles including Nintendo Switch, Lenovo handheld, ASUS ROG handheld, and Steam gaming consoles.
