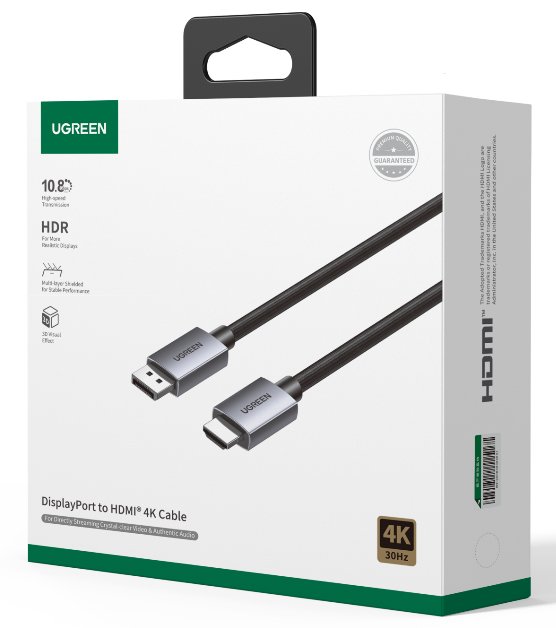

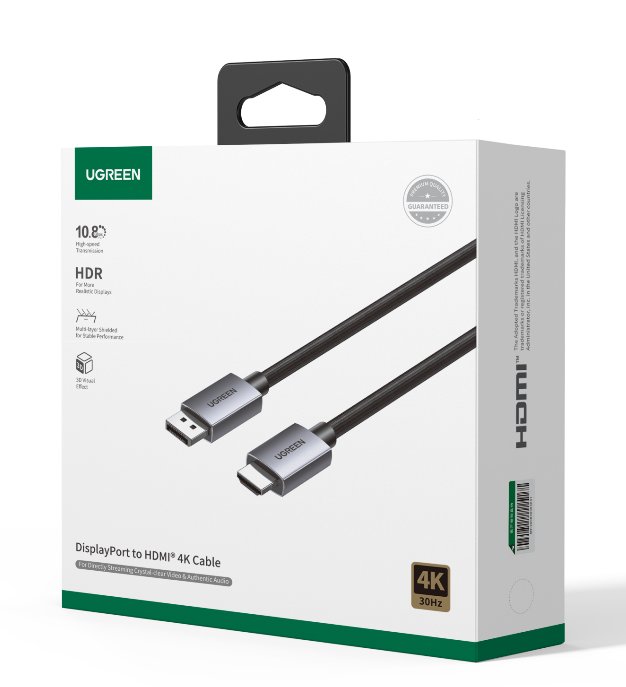

UGREEN DisplayPort to HDMI 4K Cable 1m

Mô tả

• Line length: 1-5 meters
• Gauge:
• 1-2 meters:32AWG[(1/0.20BC)*1P+AL]*4C+[32AWG(1/0.20BC)*1P+D(1/0.20BC)+A. M]*1C+32 AWG (1/0.20BC)*4C+F+AL+B (16/8/0.12AM) Outer layer wrapped in black cotton mesh 3-5 meters: 30 AWG[(1/0.254BC)*1P+AL]*4C+[30 AWG(1/0.254BC)*1P+D(1/0.254BC)+A. M]*1C+30AWG (1/0.254BC)*4C+F+AL+B(16/8/0.12AM) outer layer wrapped in black cotton mesh
• Diameter OD: before weaving: 6.0±0.15mm; after weaving: 6.5±0.15mm
• The wire is coated with PVC.
• Core Material: Pure Copper
• Shielding Aluminum Foil + Aluminum Magnesium Woven
• cores, 15 cores
• Resolution/Refresh Rate: 3840*2160@30Hz / 2560*1440@60Hz / 1920*1080@120Hz
• Resistance: /
• Interface Material:
• HDMI A-type male connector, black rubber core, 1U gold-plated terminal, nickel-plated iron casing, with cable clamp
• DP male connector, black rubber core, 1U gold-plated terminal, nickel-plated iron casing, sandwich type
• Chip Model: MCU + Boost IC
• Plug-and-play cycles: 10,000 times on the HDMI end / 5000 times on the DP end
• Swing Test: Test 1,000 times, swing angle 60 degrees, lifting weight 200 grams, frequency 40 times per minute
• Impedance: 100±5Ω
• Connect the directional DP end to the signal source device, and the HDMI end to the display device; do not reverse connect.
• Interface Version/Bandwidth: HDMI 1.4/10.2 Gbps
• Does ARC support: No.
• Does HDR support: yes
• Flame Retardant Grade: VW-1
• Operating Temperature/Storage Temperature: 0~45°C / -15~75°C
• Environmental requirements: All materials must comply with EU RoHS 2.0, REACH, SVHC, Appendix 17, POPs, California 65, and TSCA standards.
