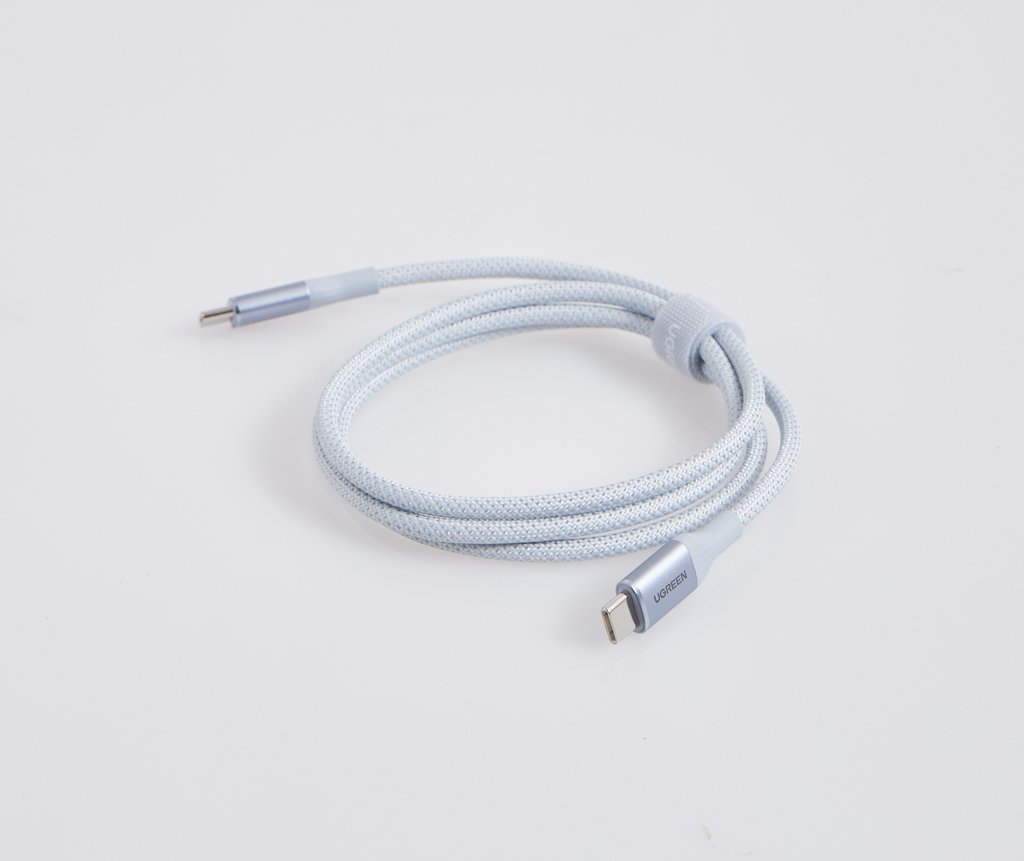

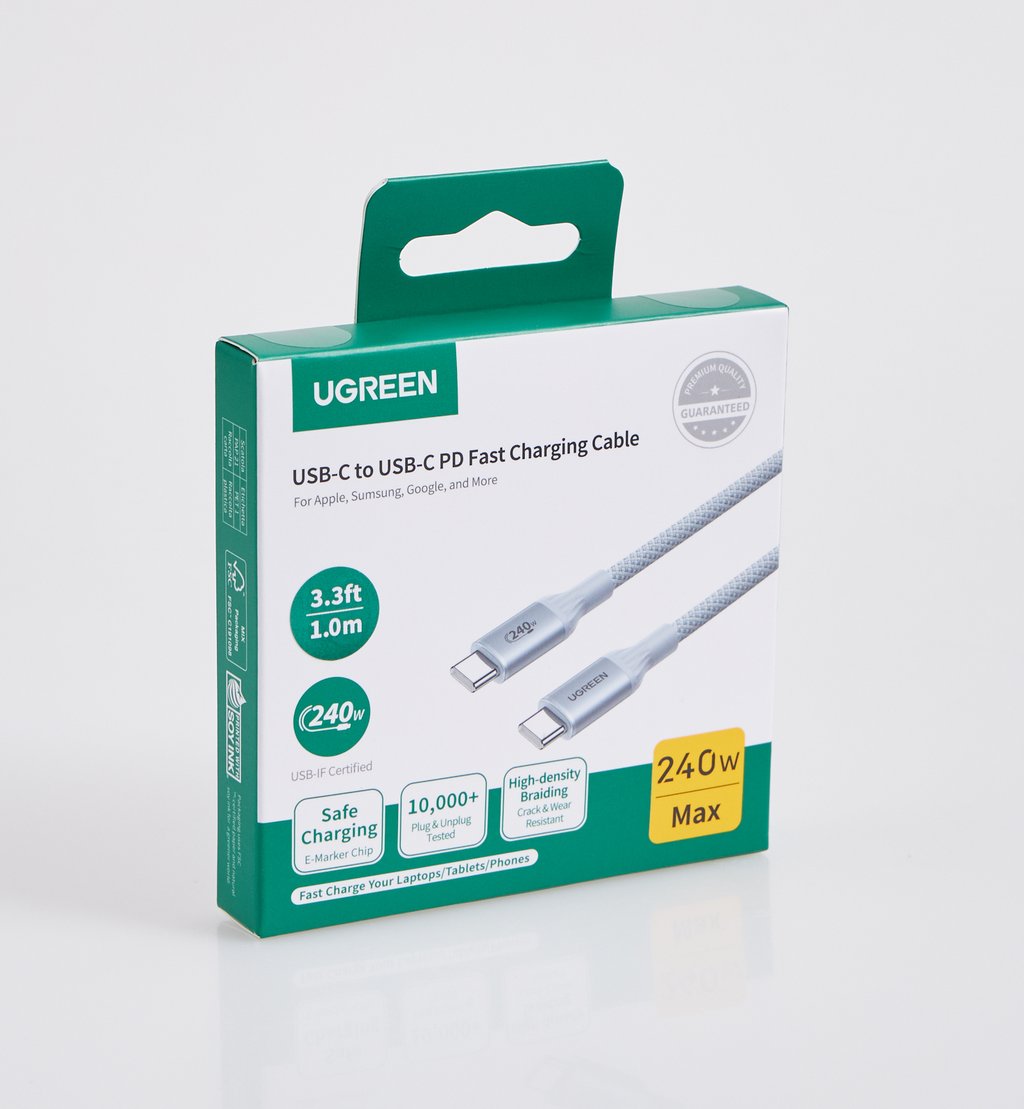

UGREEN USB-C to USB-C PD Fast Charging Cable 1m

Mô tả

• Line length: 0.5-2 meters
• Gauge:
• 0.5~1 meters: 30 AWG (19/0.06TS+250D) signal cable * 2C (white/green) + 30 AWG (19/0.06TS+250D) CC cable * 2(blue/yellow) + 24 AWG (41/0.08TS+250D) power cable
• 3C (pink/pink/gray) + F(1000D Nylon) * 4 strands + AL + B (16/7/0.08TC) outer layer wrapped in gray-blue/black-gray woven mesh (twisted)
• 2 meters: 28 AWG (30/0.06TS+250D) signal cable * 2C (white/green) + 30 AWG (19/0.06TS+250D) CC cable * 2(blue/yellow) + 23 AWG (52/0.08TS+250D) power cable * 3C
• (Pink/Pink/Gray) + F(1000D Nylon) * 4 strands + AL + B (16/10/0.08TC) Outer layer wrapped in gray-blue/black-gray woven mesh (twisted)
• Diameter OD
• Gray-blue 1 meter: Before weaving: 3.9±0.1mm / After weaving: 4.4±0.15mm Black-gray 0.5~1m: 3.9±0.1mm / After weaving: 4.5±0.15mm
• Gray-blue 2 meters: Before weaving: 4.0±0.1mm / After weaving: 4.5±0.15mm nBlack-gray 2 meters: 4.0±0.1mm / After weaving: 4.6±0.15mm
• Outer sheath of the wire: plastic silicone
• Core material: tin-plated copper
• Shielding: aluminum foil + tin-plated copper braided
• Number of cores: 7 cores
• Carrying current 5A (MAX)
• Pin count: USB-C: 12-pin
• plug
• USB-C/M Black Rubber Core (94V-0) Terminal Gold-Coated 15U”, Stainless Steel Enclosure Nickel-Coated 10nF Capacitor, Withstand Voltage 100V (One End Equipped with E-Marker Chip: HUSB332E)
• The gray-blue model features a white rubber core.
• Chip model: HUSB332E
• Plug-and-play times: USB-C: 10,000 times
• Swing Test: 3,000 times, speed 30 times/min, angle ±90°C, lifting capacity 300g
• Resistance parameters: 0.5~1 meters: Single on-wire DC resistance: Data cable ≈ 0.33Ω/m, Power cable ≈ 0.08Ω/m²: Single on-wire DC resistance: Data cable ≈ 0.2Ω/m, Power cable ≈ 0.067Ω/m
• Capacitor parameters: 10 nF * 2
• Interface version/data transfer: USB 2.0/480 Mbps
• Resolution: /
• Charging power: 5V/3A, 9V/2A, 9V/3A, 15V/2A, 15V/3A, 20V/5A, 28V/5A, 36V/5A, 48V/5A (Max)
• Charging protocol: PD (3.1/3.0/2.0)/PPS
• Flame-retardant grade: GB/T 5169.23-2024
• Operating temperature/storage temperature: 0~45°C / -15~70°C
