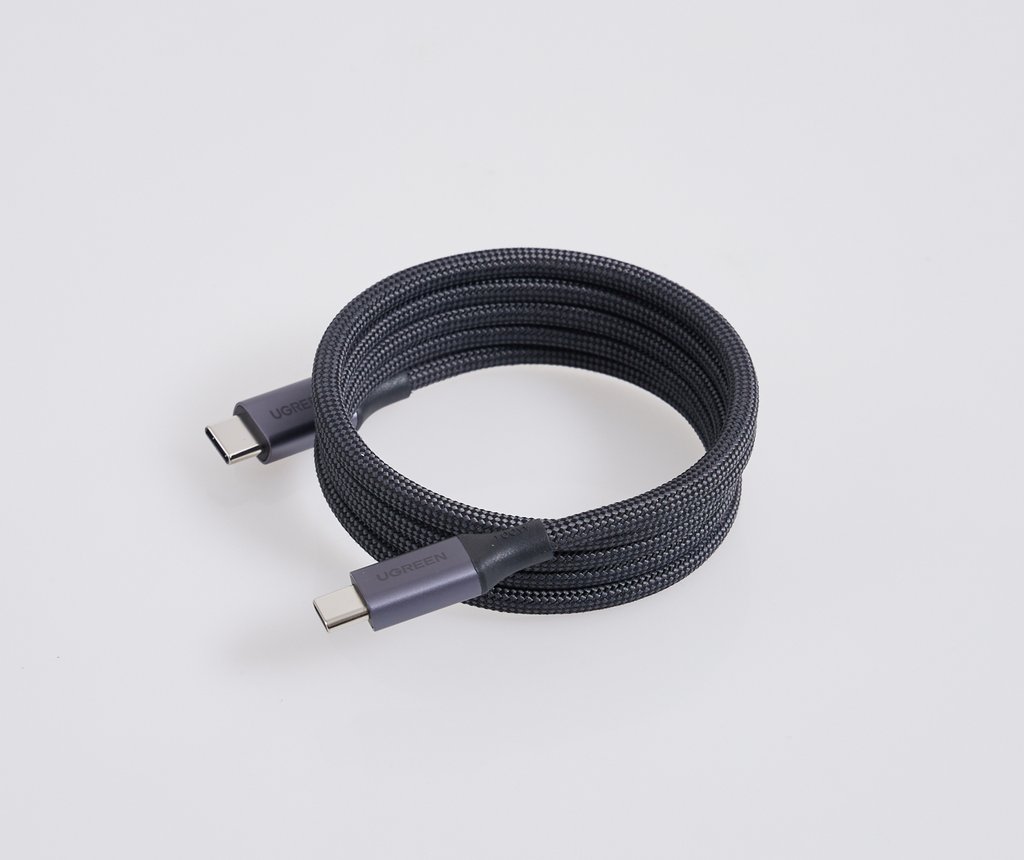

UGREEN USB-C to USB-C PD Magnetic Fast Charging Cable

330.000₫ 480.000₫

SKU: Kho: Hết hàng
SKU: 55517 Danh mục: Thương hiệu:

Chính sách mua hàng

Freeship 350K Freeship 350K
BH 18 tháng BH 18 tháng
Chính hãng Chính hãng
CO, CQ, VAT CO, CQ, VAT
Cần tư vấn? Chat Zalo 0835 33 48 33
  • Line length: 1 meter
  • Gauge:
  • 30 AWG (19/0.06TS) signal cable *1P (white/green) + AL] + 30 AWG (19/0.06TS + 250D Nylon) CC cable *2 (blue/yellow) + 22 AWG (65/0.08TS + 500D Nylon) power cable * 1C
  • (Red) + D(65/0.08TS + 500D Nylon) * 2C + F(500D * 3 Nylon Thread) * 4 strands outer layer wrapped in black-gray woven mesh (twisted)
  • Diameter OD Before weaving: 3.5*4.0±0.1mm After weaving: 4.1*4.6±0.15mm
  • Outer layer of the wire: magnetic material + hot melt麦拉
  • Core material: tin-plated copper
  • Block: /
  • Wire core count: 5 cores + 2 floors
  • Carrying current 5A (MAX)
  • USB-C pin count: 12 pins
  • Plug with USB-C/M black rubber core (94V-0), gold-plated 3U terminal, nickel-plated stainless steel casing, 10nF capacitor, one end with (E-Marker chip: HUSB332D)
  • Chip model HUSB332D
  • USB-C plug-and-play times: 10,000 times
  • Swing test 3000 times, 30 times/min, swing angle ±90°C, lifting weight 300g
  • Resistance parameters: Data cable ≈ 0.33Ω/m米, power cable ≈ 0.054Ω/m米
  • Capacitor parameters: 10 nF*2
  • Interface version/data transfer USB 2.0/480 Mbps
  • Resolution: /
  • Charging power: 5V/3A, 9V/2A, 9V/3A, 15V/2A, 15V/3A, 20V/3A, 20V/5A (Max)
  • Charging protocol: PD/PPS
  • Flame Retardant Class: GB/T 5169.23-2008
  • Operating temperature/storage temperature: 0~45°C / -15~70°C
