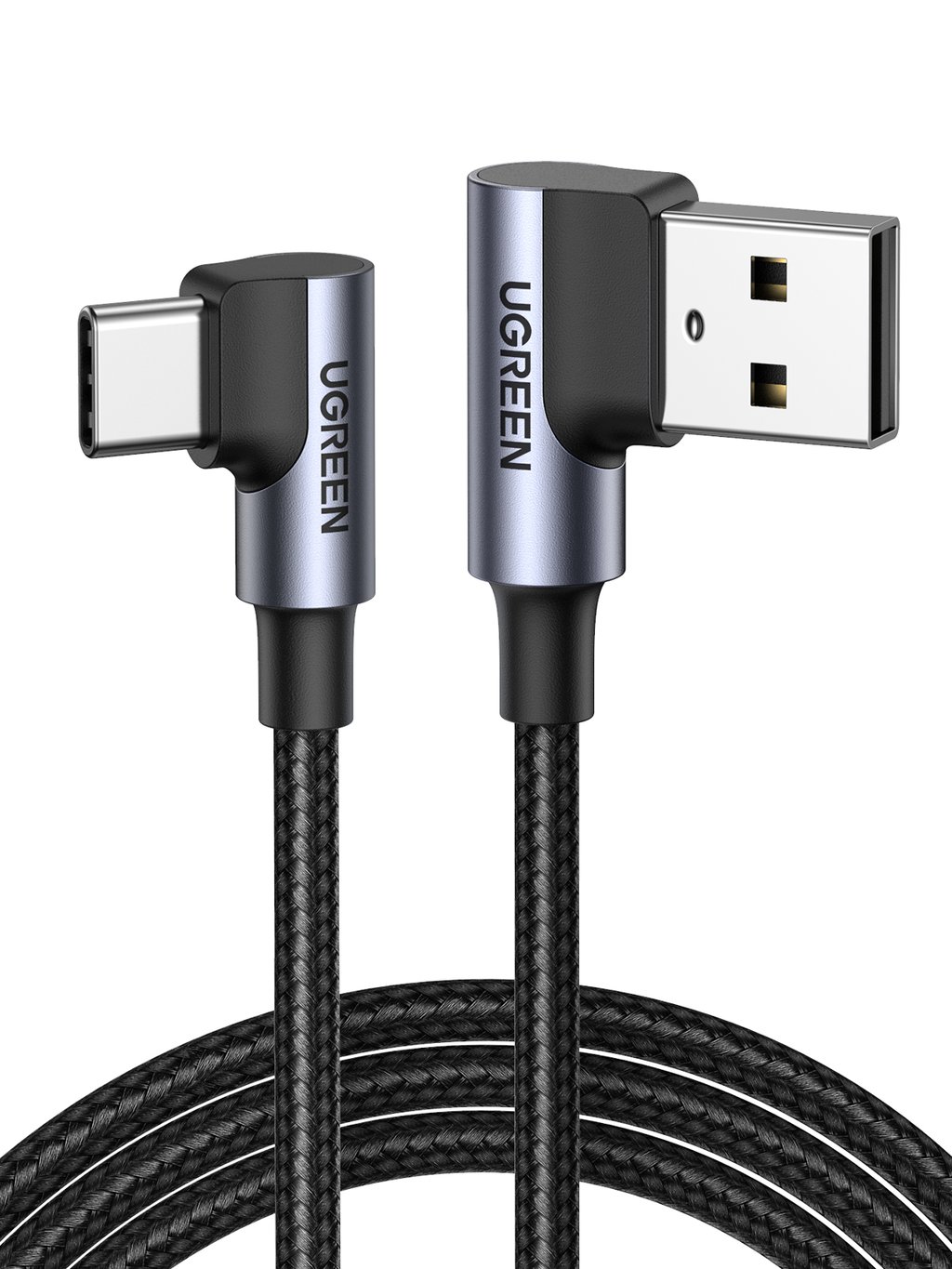

UGREEN Right Angle USB-A to USB-C Cable 1m (Space Gray)

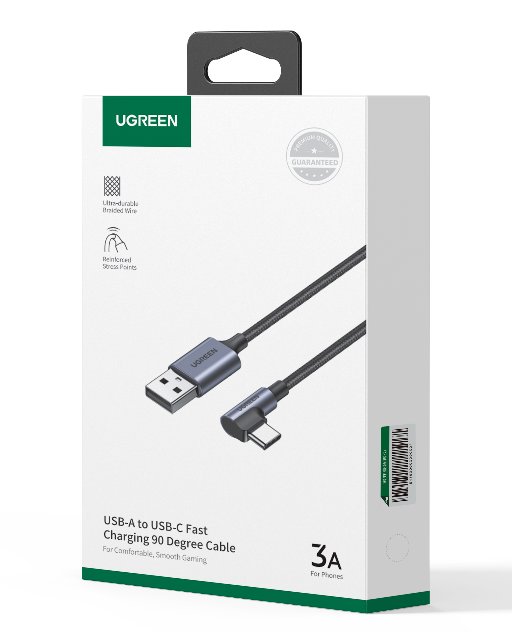

UGREEN Right Angle USB-A to USB-C Cable 1m (Space Gray) - Ảnh 2
UGREEN Right Angle USB-A to USB-C Cable 1m (Space Gray) - Ảnh 3
UGREEN Right Angle USB-A to USB-C Cable 1m (Space Gray) - Ảnh 4

UGREEN Right Angle USB-A to USB-C Cable 1m (Space Gray)

999.999₫

SKU: US176 Danh mục:

Mô tả

  • Line length: 0.5-3 meters
  • Gauge:
  • 0.5~1 meters: 30 AWG (11/0.08TS + 250D Nylon) data cable * 2C (white/green) + 24 AWG (41/0.08TS + 250D Nylon) power cable * 1C (red) + D (41/0.08TS + 250DNylon) + 3000 DNylon + AL outer layer wrapped in black woven mesh (twisted)
  • 1.5~2 meters: 30 AWG (11/0.08TS + 250D Nylon) data cable * 2C (white/green) + 22 AWG (65/0.08TS + 500D Nylon) power cable * 1C (red) + D (65/0.08TS + 500DNylon) + 3000 DNylon + AL outer layer wrapped black woven mesh (with twist)
  • 3 meters: 30 AWG (11/0.08TS + 250D Nylon) data cable * 2C (white/green) + 20 AWG (100/0.08TS + 500D Nylon) power cable * 1C (red) + D (100/0.08TS + 500DNylon) + 3000 DNylon + AL outer layer wrapped in black woven mesh (twisted)
  • Diameter OD Before weaving: 3.3±0.1mm / After weaving: 3.8±0.15mm n3 meters: Before weaving: 3.5±0.1mm / After weaving: 4.0±0.15mm nWire external coating TPE
  • Core Material: Tin-Coated Copper
  • Shielding Aluminum Foil
  • cores, 3 cores + 1 floor
  • Current Capacity: 3A (MAX)
  • pin for USB-C:12Pin USB-A:4Pin
  • Plug:
  • USB-C/M Black Rubber Core (94V-0) Terminal Gold-Coated 3U Stainless Steel Enclosure Nickel-Coated Elbow PCB Board 2.0 Rp56K Resistor
  • USB2.0 A/M Black Vinyl Core (94V-0) Terminal Gold-Coated G/F Nickel-Coated Iron Case 4Pin with Short Circuit
  • Device types connected at both ends: USB-A connects to the main device, while USB-C connects to the slave device (bidirectional conversion is not supported)
  • Chip Model: /
  • Plug-and-play times: USB-C: 10,000 times, USB-A: 3,000 times
  • Swing test 3000 times: angle ±90°, lifting weight 300g, 30 times per minute
  • Resistance:
  • Single-through DC resistance: 0.5~1 meters: data cable approximately 0.3 Ω/m / power cable about 0.085 Ω/m / 1.2~1.8 meters: data cable about 0.3 Ω/m / power cable about 0.054 Ω/m3: data cable about 0.3 Ω/m / power cable about 0.035 Ω/m
  • Capacitor Parameters: /
  • Interface Version/Data Transfer:USB 2.0/480 Mbps
  • Resolution: /
  • Charging power: 5V/3A, 9V/2A, 12V/1.5A (MAX)
  • Charging Protocols:FCP/QC/AFC
  • Flame Retardant Grade:GB/T 5169.23-2008
  • Operating Temperature/Storage Temperature: 0~45°C / -15~70°C

Thông tin bổ sung

Phân Loại

,

Model

US176
