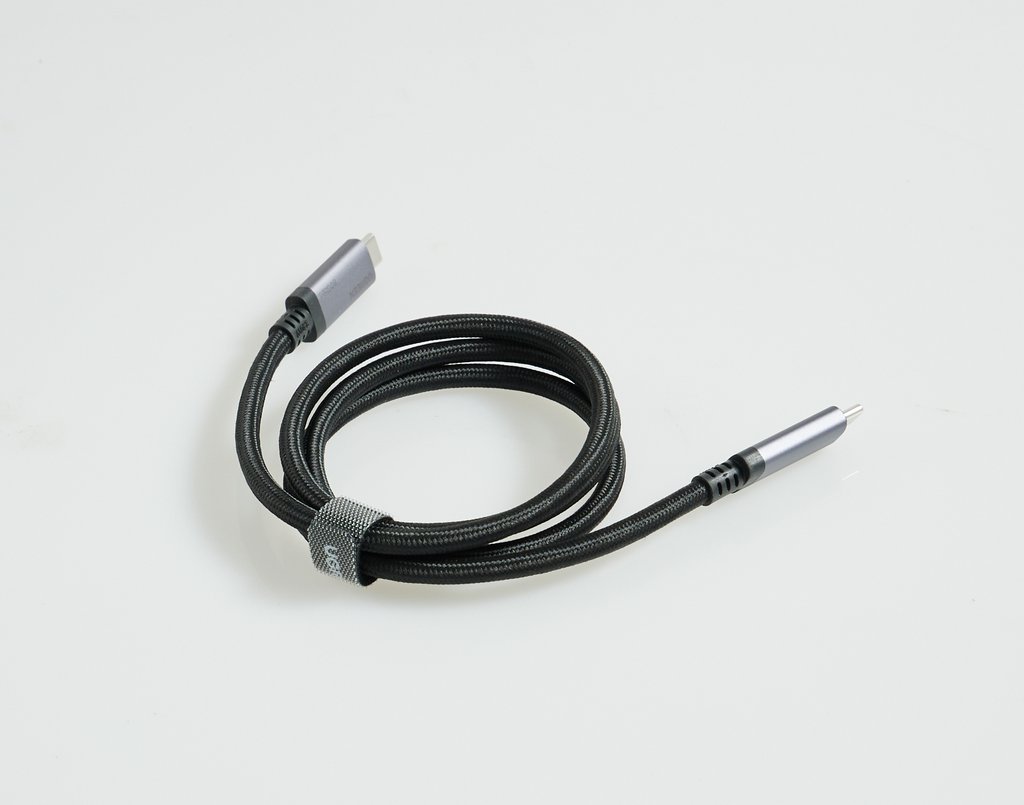

UGREEN USB4 Cable 5A Max 1m

Mô tả

• Line length: 1 meter
• Gauge:
• [30AWG(1/0.275BC) + D+CU/Hot Mylar] High-speed signal pair (white/blue) * 4P + 32AWG (7/0.08BS) USB 2.0 cable * 1P (white/green) + 34AWG (7/0.06BS) CC cable + SBU* 4C (red/23AWG (52/0.08BS) * outer layer (fiber) + 0.08BS) + 0.06BC cable *wires + 0.06BC (black)
• Diameter OD before weaving: 5.0±0.1mm after weaving: 5.5±0.15mm
• The wire is externally coated with TPE.
• Core Material: Bare Copper + Tin-Coated Copper
• Shielding Aluminum Foil + Bare Copper Braided
• cores:15 cores + 1 floor
• Current Capacity: 5A (MAX)
• pin for USB-C: 24-pin
• Plug: USB-C/M Black Vinyl Core (94V-0) Pin Gold Plated 30U Stainless Steel Enclosure Nickel Plated 10nF Capacitor with Voltage Resistance 100V (One End Equipped with E-Marker Chip: IP2133H)
• Chip model IP2133H
• USB-C plug-and-play operations: 10,000 times
• Swing tests: 1000 times: angle ±60°, lifting weight 200g, 40 times per minute
• Resistance Parameters: Single conduction DC resistor: high-speed signal line ≈ 0.29Ω/m², USB 2.0 signal line ≈ 0.5Ω/m², CC/SBU line ≈ 0.89Ω/m², power supply line ≈ 0.067Ω/m². Capacitor * parameters: 10nF*2
• Interface version/data transfer via USB4 Gen4 (downward compatible with Thunderbolt 4/3/USB4/3.1/3.0/2.0) / bidirectional transmission at 80Gbps, unidirectional video bandwidth at 120Gbps
• Resolution: Tested expansion docks and computers equipped with Thunderbolt 5 interfaces can accommodate 3 4K@60Hz displays, theoretically supporting 3K@144Hz displays, a single 16K@60Hz display, with charging powers of 5V/3A, 9V/2A, 9V/3A, 15V, 15V/3A, 20V/328, and A/548, A (Max/548)
• Charging Protocol PD (3.1/3.0/2.0)
• Flame Retardant Grade GB/T 5169.23-2008
• Operating Temperature/Storage Temperature: 0~45°C / -15~70°C
